Stull Feeders 600 LBS Grain/Cube Auger Feed Hopper

Overview

The Stull Feeders 600 LBS Grain Cube Auger Feed Hopper is engineered for durability, efficiency, and automation. With a 600‑pound capacity, it’s ideal for feeding livestock across larger pastures or remote areas without needing frequent refills. The entire structure is fabricated from 16 gauge galvanized steel, offering corrosion resistance and rugged longevity.

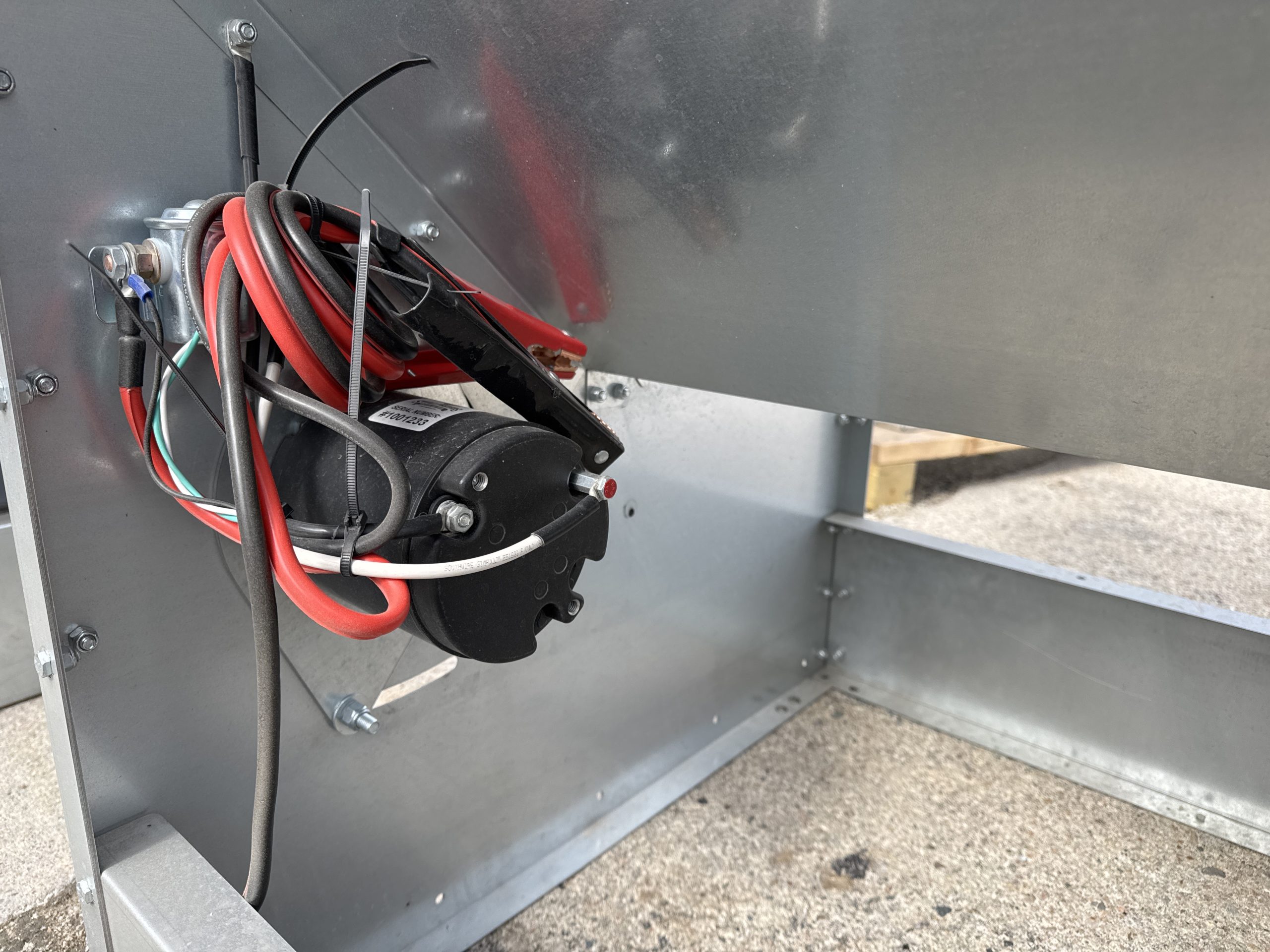

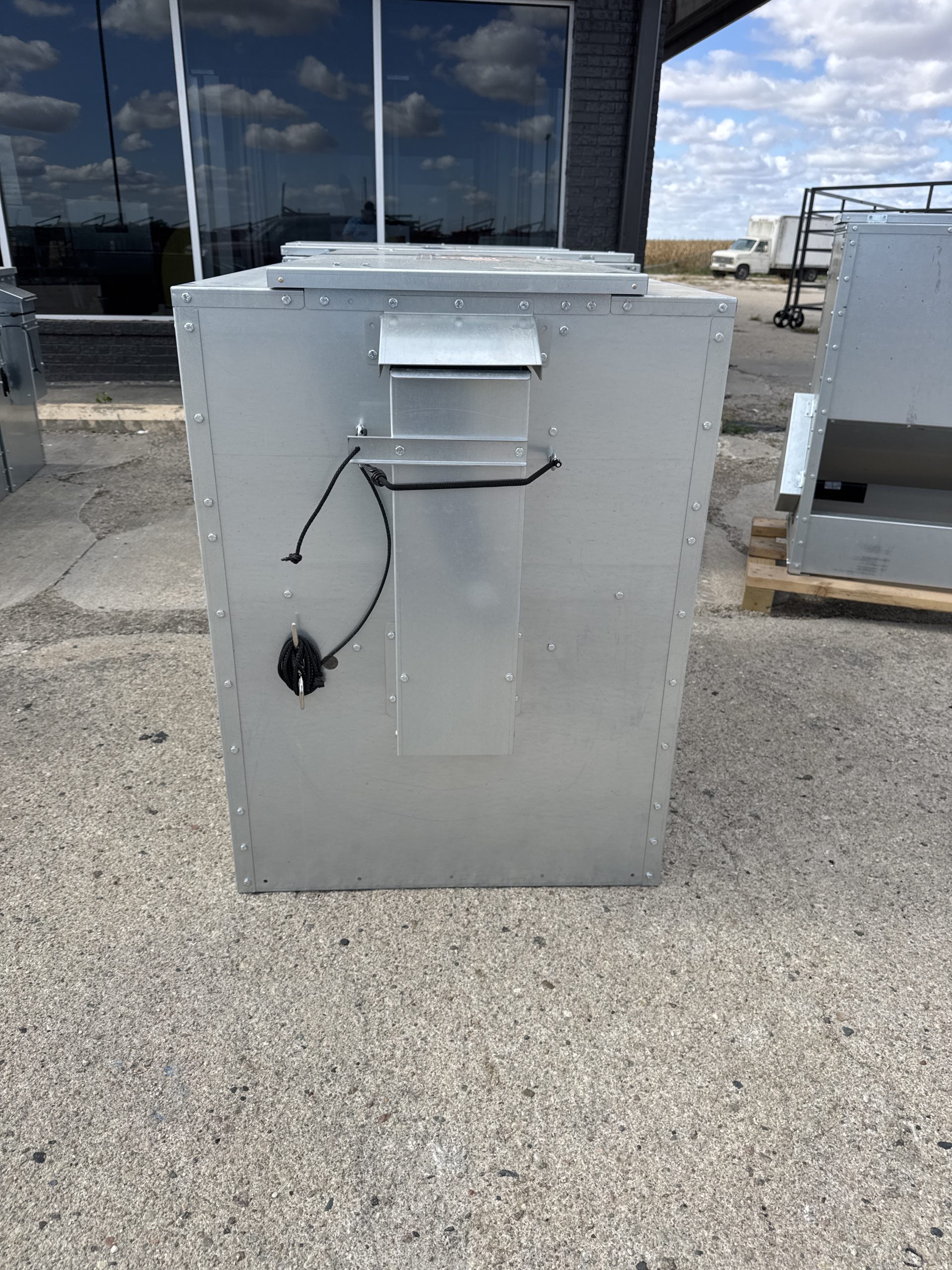

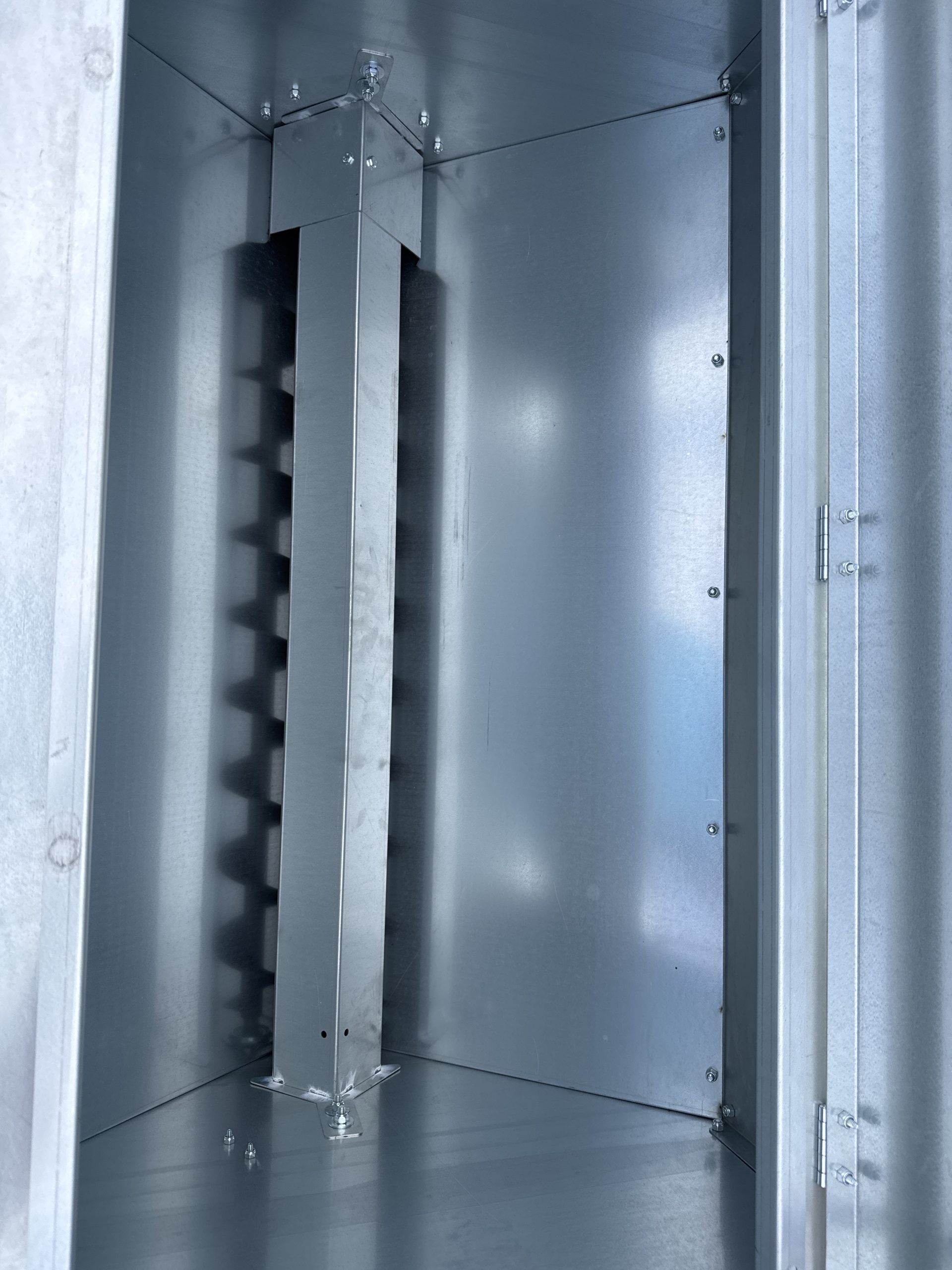

Equipped with a 4″ chain‑drive auger, this hopper moves feed reliably under different conditions. The auger is powered by a 12 V motor that draws around 30 amps (ensure to use a deep‑cycle battery). A 20′ “on demand” style switch allows you to control the auger from your seat. The chute uses an actuator for up/down adjustment from the cab, enabling precise placement of feed without dismounting the vehicle. The interior auger cover is adjustable to accommodate varying feed types (grain or cubes), which helps reduce bridging or clogging. Maintenance is straightforward — chain lubrication is recommended every 40 hours to maintain optimal operation. The feeder rests in your UTV bed or truck bed mounting setup and bolts into place for a secure fit.

Because it’s designed to mount in a UTV or truck bed, this feeder moves with you. The actuator‑controlled chute allows you to drop feed where needed — on ground, in bunks, or along fence lines — all controlled from your driving position. The galvanized steel construction gives it rugged durability for frequent field use.

Key Features & Benefits

Technical Specifications

Applications & Uses

The 600 LBS Grain Cube Auger Feed Hopper is well suited for livestock producers, wildlife managers, or operations needing feeder mobility. Installed in a UTV or truck, it allows you to drive to remote pens, pastures, or feed zones and dispense feed without hauling animals back to a central location.

In pasture management or rotational grazing systems, this feeder allows efficient and precise feed placement along fence lines or in bunkers, helping reduce trampling and waste. The actuator chute makes it easy to place feed at optimal heights or positions without leaving the vehicle.

Wildlife or supplemental feeding programs can also benefit from this unit. Its capacity and flexibility make it suitable for feeding deer, elk, or other species, especially in rough terrain. The adjustable auger and robust design help it handle varying feed types and delivery conditions.
